It is a manually operated valve used for the injection of fluids such as corrosion inhibitors or methanol to prevent hydrate formation.
48+ Christmas Tree Wing Valve
Pictures. In petroleum and natural gas extraction, a christmas tree, or tree, is an assembly of valves, casing spools, and fittings used to regulate the flow of pipes in an oil well, gas well, water injection well. Wellheads and christmas trees are different pieces of equipment (figure 1).
Wellhead Surface Safety Valve Oilfield Safety Valve Manufacturer from www.sjpec.com
• check all flanged connections for leaks. The wing valves used to connect the christmas tree with the production line, which transfer the oil to palnt manifold. The christmas tree is a series of valves, flanges, choke body and connectors that allow the controlled flow of produced fluids.

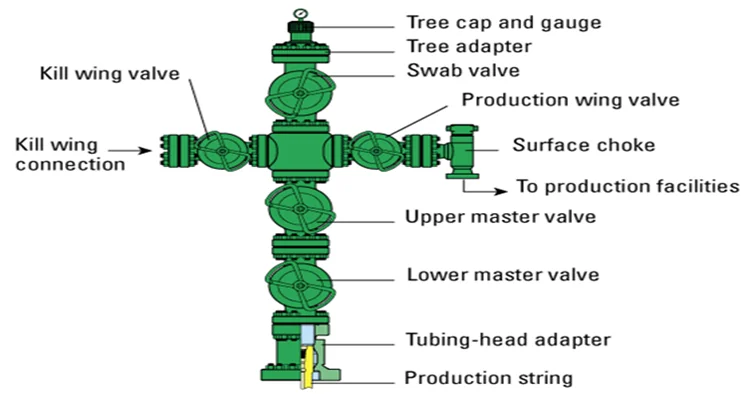

A typical christmas tree, composed of a master gate valve, a pressure gauge, a wing valve, a swab valve and a choke is shown above.
A christmas tree is an assembly of valves, spools, and fittings used for an oil well, gas well, water injection well, water disposal well, gas injection well as you can see even on this christmas tree diagram there are five valves. The wing valve design to ensure adequate thread engagement into the retainer ring and further reduce the risk of potential future failures. Christmas tree (xmas tree) design. The christmas tree may also have a number of check valves.
